1800Kv
106 grams light with wires and 4mm bullets
1/8" D shaft output (standard 540)
Chrome plated magnets
v3 ultralight housing
precision magnet retention assembly
35.56 diam. X 31mm long
28x16mm 14 pole stator
Holmes magnetics and housing design
2-4S LiPo power input

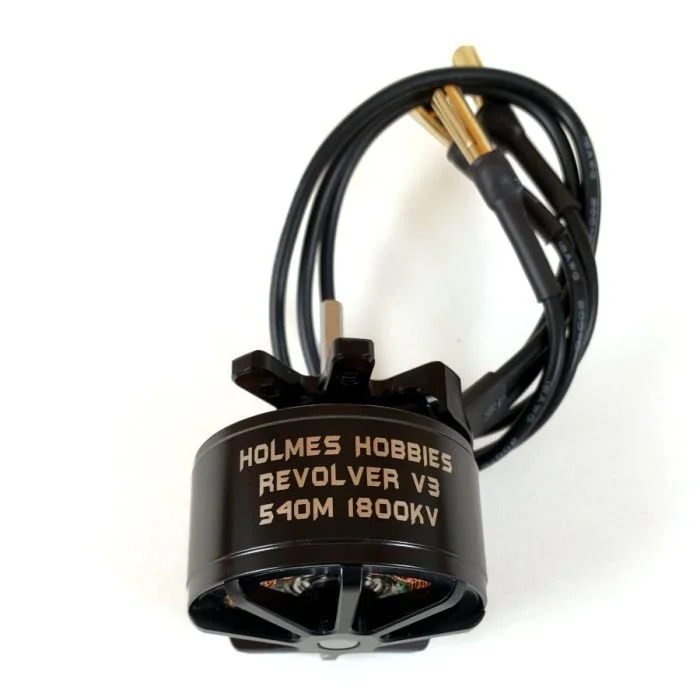

The 540M made its debut in the Team Spec lineup and was a hit! It has been very popular for the Vanquish VRD using the Stubby VFD conversion. 540M size offers extremely stout performance for rigs up to 7.5 pounds, but with proper gearing the heavier rigs have no problem. It is the perfect combination of small but not too small! 100% Holmes engineered for competitive crawling rigs and scale/trail rigs that need a smaller, lighter, higher performance motor.
To prevent motor damage, be sure that screws are not inserted more than 3mm into the mounting holes.
